Adhesive Dispensing Equipment 500mm/sec Dispenser Robot 600*600*100mm For Electric Oven

Zhongshan GDS Automation Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Adhesive Dispensing Equipment 500mm/sec Dispenser Robot 600*600*100mm For Electric Oven

Brand Name : GDS

Model Number : TD-6060

Certification : CE

Place of Origin : CHINA

MOQ : 1 PIECE

Price : CONTACT US

Payment Terms : T/T

Supply Ability : 30PCS/mon

Delivery Time : 10 days

Packaging Details : plywood case

name : Dispensing Equipment

function : dispensing silicone

Application : electric oven

Warranty : 1 year

After-sales service : on-line or on-site

EXW report : test video available

Contact Now

Adhesive Application for Electric Oven Production Using Automatic Glue Dispensing Robots





Machine Description



Electric oven for home use or commercial use have many parts assembled by applying adhesives like hot-melt glue or silicone to get better bonding or sealing performance. If glue process done by manual operation, the efficiency may not satisfy manufacturers' requirment. GDS automatic glue dispensin robot can address the problem of low speed, low quality, and glue waste by following machine advantages:

  • Achieving application speeds up to 500mm/s
  • Reducing adhesive waste by 40% compared to manual methods
  • Executing pre-programmed dispensing paths with millimeter precision
  • Maintaining consistent adhesive thickness (0.5-1.2mm)

This advanced robotic glue dispensing solution enhances production efficiency by times percentage while ensuring superior bond quality. By replacing error-prone manual operations, the system guarantees repeatable precision across food warming table batches, making it an essential automation tool for modern household appliance manufacturing.





Machine Features



  • equipped industrial PLC controller, for different glue with different settings ensure the best performance;
  • replace manual silicone application
  • floor-stand design with wide working range(600*600MM), fit for small size work-piece;
  • glue flow control is stable without leakage and drawing.
  • get better water-proof and bonding performance
  • equipped with small hand programming controller
  • make the gluing process easy to accelerate
  • can fit for different brand silicone in 300ml package or 2600ml package

Adhesive Dispensing Equipment 500mm/sec Dispenser Robot 600*600*100mm For Electric Oven







Technical Parameters

 model  HTD-600
 MCU  3 axis movement controller
 programming  teaching programming
 drive mode

 Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way

 Working Range(X*Y*Z)

 600*600*100mm

 Max Moving Speed

 MAX 500mm/sec

 Repeat Accuracy

 ±0.02mm

 Program Memory Capacity

 Program Memory Capacity

 Dimension(L*W*H)

 700*650*1200mm

 Working Power

 AC220V/5060Hz/150W

 Working Air Pressure

 0.4 ~ 0.6Mpa(no condensation)

 Working Temperature and Humidity

 Temperature: 0 ~ 40 Humidity:20 ~ 90%




Glue applicable
300ml package silicone or 2600ml package silicone

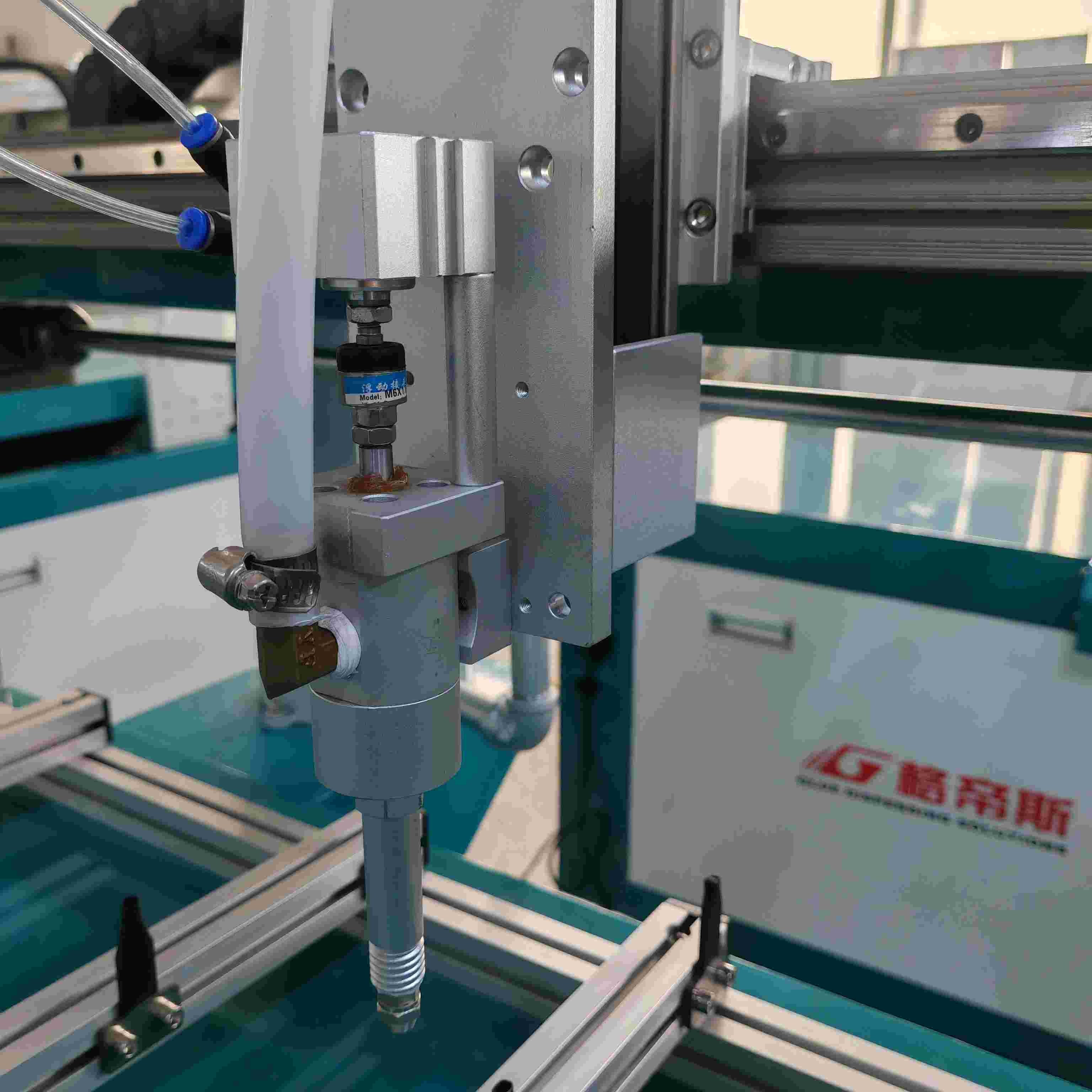

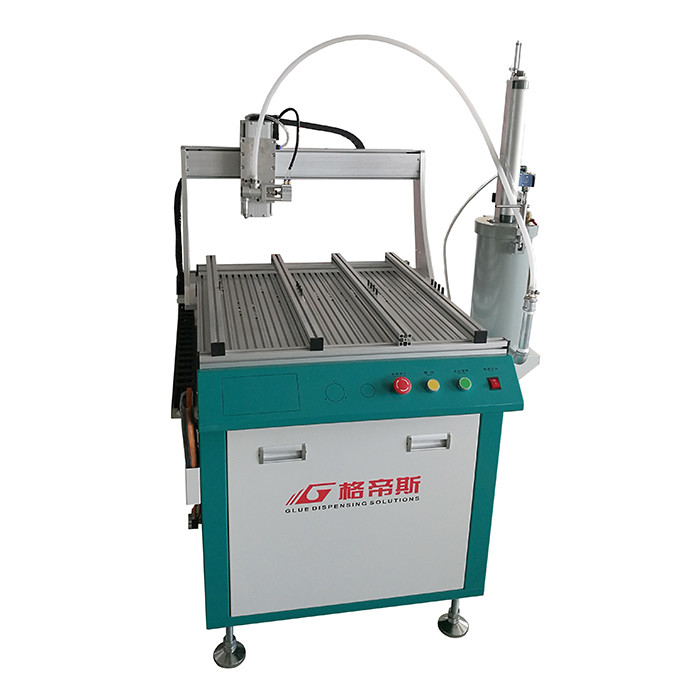

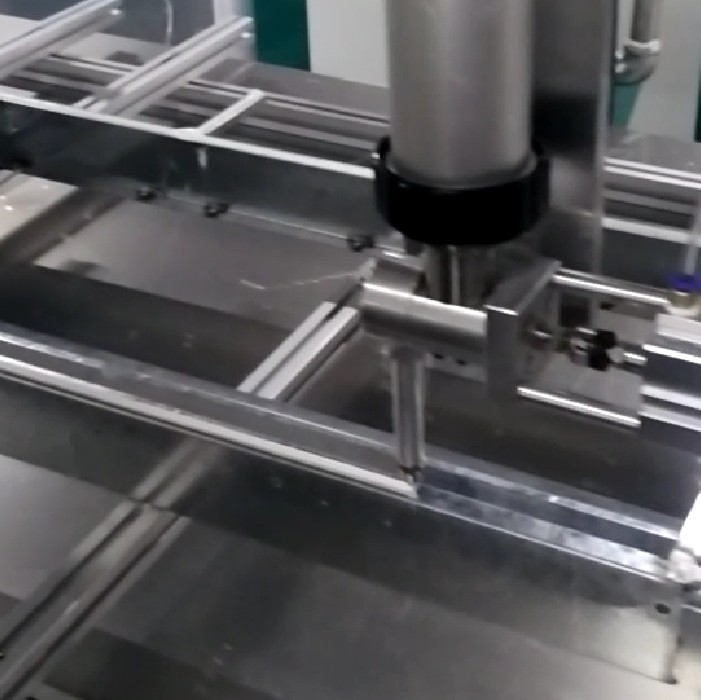

Machine Details



Adhesive Dispensing Equipment 500mm/sec Dispenser Robot 600*600*100mm For Electric Oven Adhesive Dispensing Equipment 500mm/sec Dispenser Robot 600*600*100mm For Electric Oven
