Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

Certification : CE

Packaging Details : PLYWOOD CASE

Supply Ability : 30PCS/MONTH

Price : CONTACT US

Brand Name : GDS

Model Number : TD-400

Place of Origin : CHINA

MOQ : 1PIECE

Payment Terms : T/T

Delivery Time : 7 WORKING DAYS

Name : 3 Axis Dispensing Robot

Application : all industries

Function : dispensing silicone

EXW report : test video available

Warranty : 1 year

After-sales Service : On-line

Contact Now

High speed and accuracy Desktop Three-axis Glue Dispensing Machine automatic glue dispenser

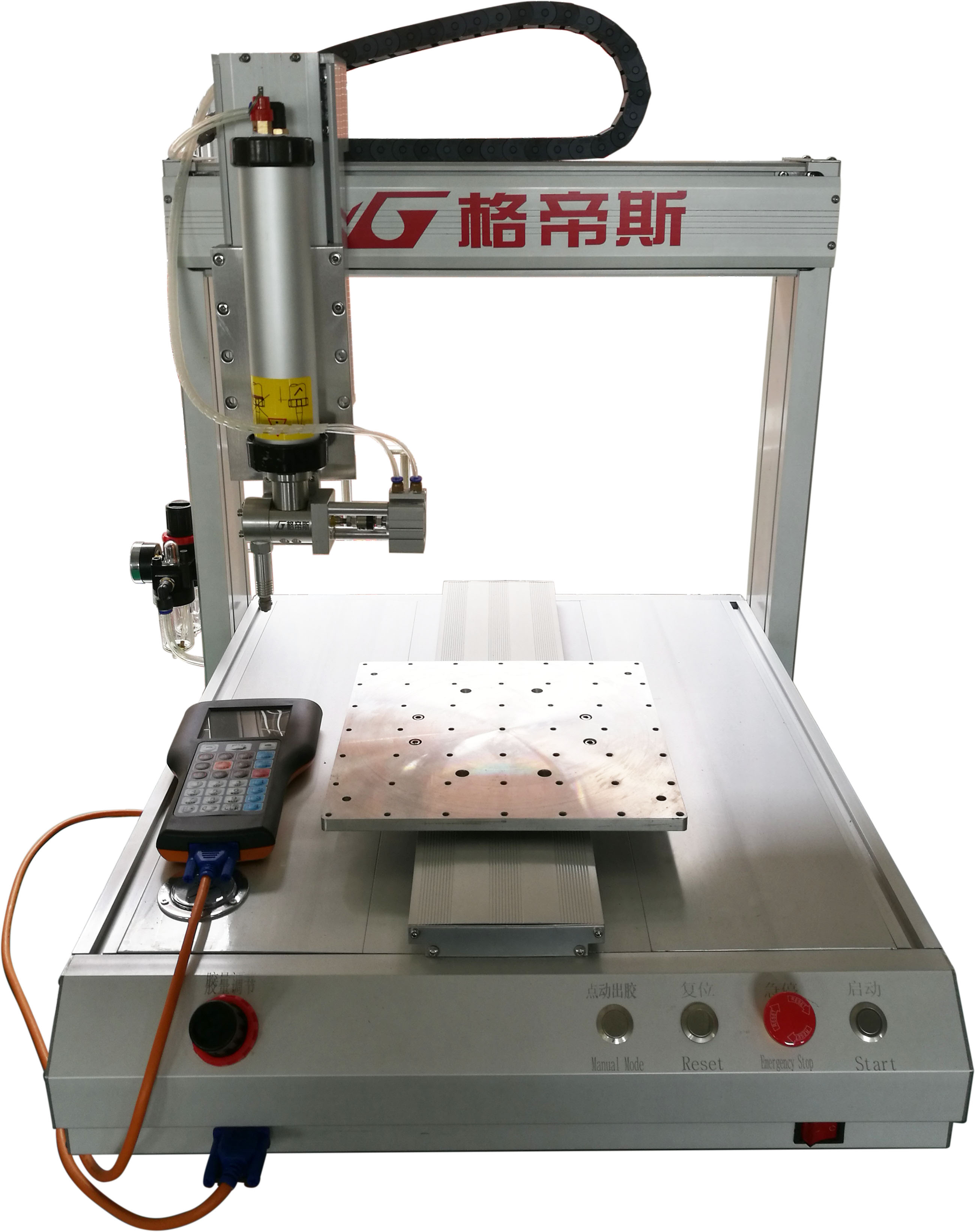

Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

Three-axis Glue Dispensing Machine is suitable for single component glue and can be used for flood light and other outdoor lights gluing. The working theory is as following. Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air.

Machine Features

Desktop design with hand programming controller, easy to learn and operate;

Gluing track can be set as points, line, surface, full circle, arc and combinations etc;

The instructions can be copied and arrayed;

Equipped industrial PLC controller, for different glue with different settings ensure the best performance.

Glue flow is stable without leakage and drawing.

Model	TD-400
MCU	Three-axis Movement Controller
Programming Mode	Teaching programming case
Drive Mode	Precise stepping motor+synchronous belt+linear guide-way
Working Range	400(X)400(Y)100(Z)mm(Non-standard can be customized)
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 unit
Dimension	L500W850H1300mm
Weight	50Kg
Working Power	AC220V/50~60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature:0 ~ 40℃ humidity:20 ~ 90%

Applications: Various lights, auto parts, digital products, optics lens, mechanic parts, semiconductor encapsulation etc.

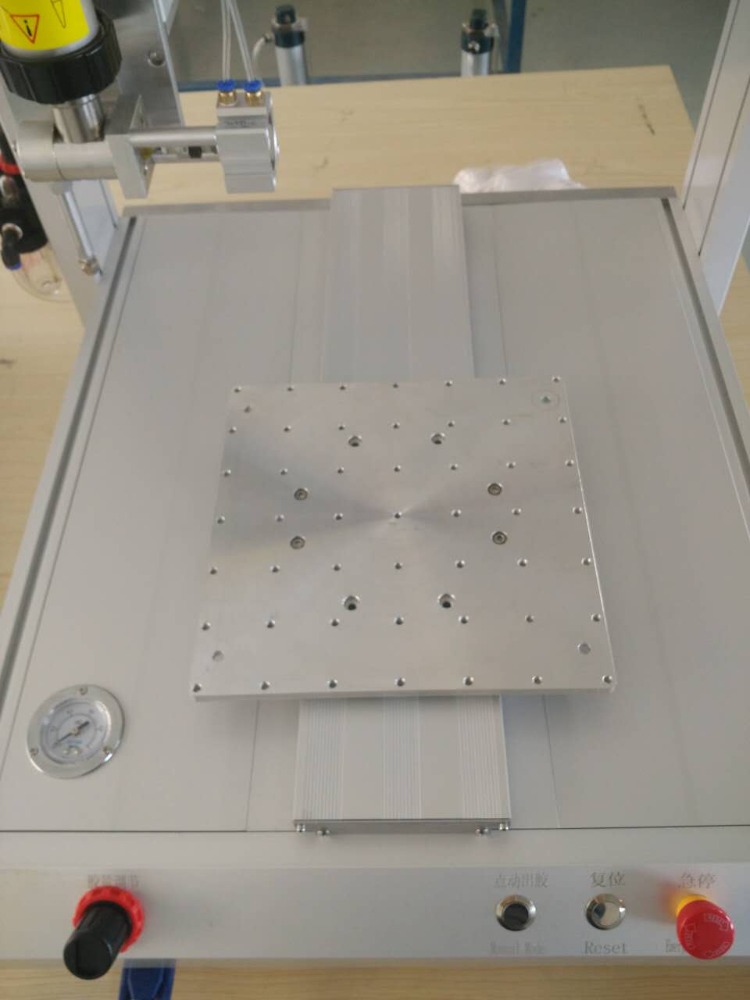

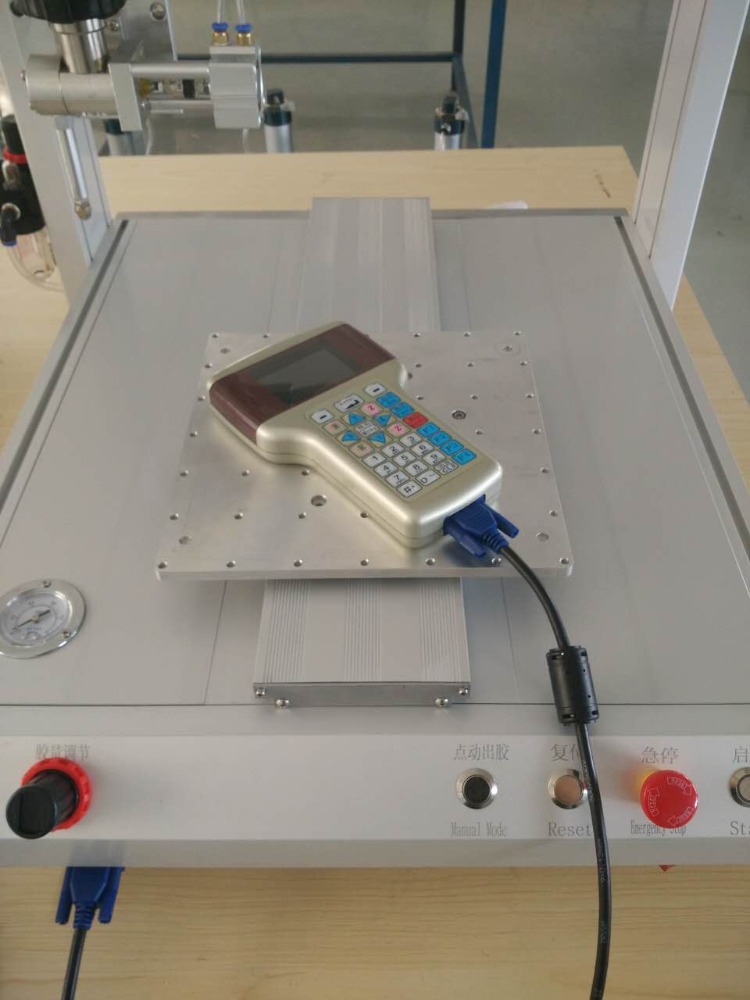

Machine Details

Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W
